How Peptide Formulation Development Works for Researchers
Peptide formulation development is frequently described as a straightforward extension of synthesis. In practice, understanding how peptide formulation development works reveals a far more demanding, iterative process. The formal term used in pharmaceutical sciences is “peptide drug product development,” and it encompasses decisions about physical presentation, chemical stability, excipient compatibility, and regulatory alignment. Peptides present a distinct set of challenges compared to small molecules: multiple simultaneous degradation pathways, sensitivity to pH and temperature, and structural complexity that directly constrains which formulation strategies are even viable. This guide addresses those challenges with the precision that laboratory researchers require.
Table of Contents
- Key Takeaways
- How peptide formulation development works: the foundational process
- Peptide synthesis techniques and formulation readiness
- Stability challenges and analytical characterization
- Formulation presentation formats and stability trade-offs
- Integrating formulation with manufacturing and regulatory considerations
- What I have learned from peptide formulation development in practice
- Research-grade peptide support from Vertexpeptideslab
- FAQ
Key Takeaways
| Point | Details |
|---|---|
| Formulation is iterative, not linear | Each excipient and condition screening cycle feeds directly into the next round of optimization decisions. |
| Synthesis quality determines formulation outcomes | Impurity profiles generated during SPPS directly affect downstream stability and compatibility performance. |
| Parallel presentations reduce risk | Developing liquid and lyophilized formats simultaneously hedges against stability failures revealed only under stress testing. |
| Analytical methods drive formulation decisions | Orthogonal techniques like LC-MS, SEC, and NMR link structural data to specific excipient and pH adjustments. |
| Regulatory alignment should start early | EMA and ICH guidelines require in-process controls during synthesis, not only at the final formulation stage. |
How peptide formulation development works: the foundational process
The peptide formulation process begins not at the bench but with a decision about route of administration, because that single choice constrains nearly every downstream selection. An aqueous injectable formulation for in vitro receptor binding studies will demand different tonicity, pH range, and sterility considerations than a lyophilized powder prepared for long-term archival storage in a research lab.

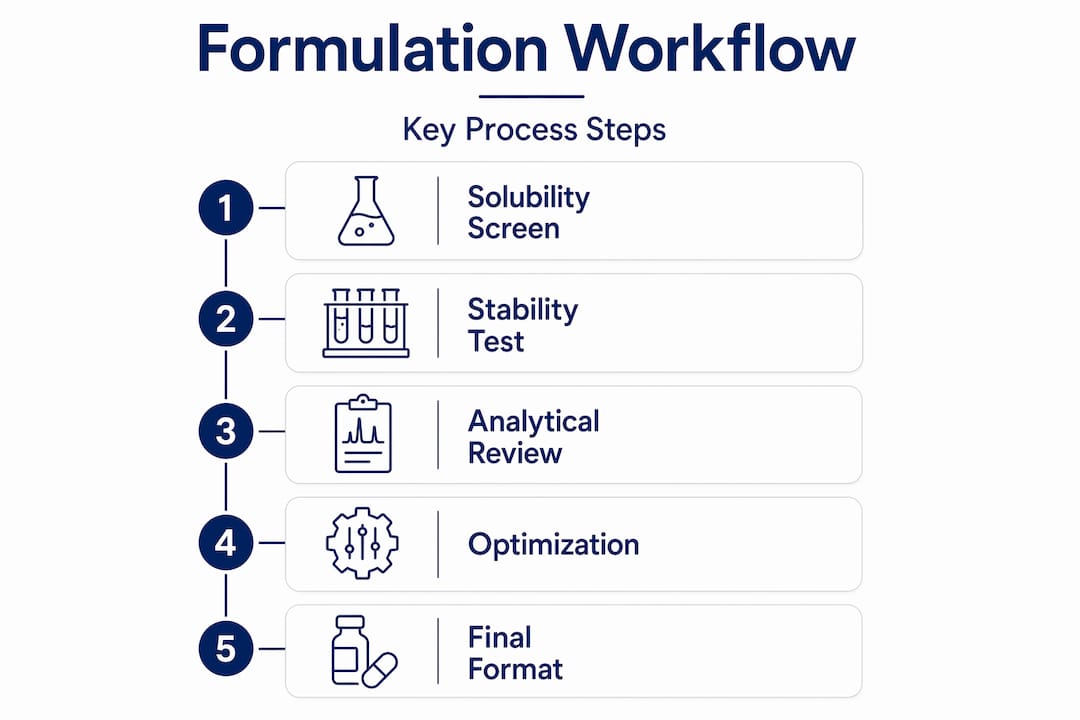

Once the route is defined, the typical workflow proceeds through these stages:
- Solubility profiling. The peptide is tested across a pH range, typically 3.0 to 9.0, in multiple buffer systems to identify conditions where solubility and chemical integrity are jointly maximized.
- Excipient and stabilizer screening. Candidates including antioxidants, lyoprotectants, and surfactants are evaluated in small-volume parallel arrays to assess their effect on measured stability.
- Presentation format selection. Based on screening data, the team selects a primary format (liquid solution, lyophilized powder, or encapsulated form) and often a backup format to run in parallel.
- Stress testing and compatibility. Accelerated and real-time stability studies expose the lead formulation to temperature, light, humidity, and mechanical stress to quantify degradation rates.
- Analytical method development. Identity, purity, and impurity assays are developed in parallel with formulation work, not after it.
- Formulation finalization and documentation. The chosen formulation is locked with a defined composition, excipient grades, storage conditions, and acceptance criteria.
The primary goals throughout are maximizing solubility, limiting chemical and physical degradation, and confirming compatibility between the peptide and all formulation components. For instance, a peptide with methionine residues will require antioxidant protection because oxidation at sulfur-containing side chains is a dominant and fast degradation pathway. Choosing the wrong buffer salt or omitting a chelating agent can accelerate metal-catalyzed oxidation by orders of magnitude.
Pro Tip: When designing early solubility screens, prepare pH solutions in triplicate across at least five buffer types rather than relying on a single phosphate buffer system. Peptides with histidine residues can exhibit pH-dependent solubility behavior that a single-buffer screen will miss entirely.
Peptide synthesis techniques and formulation readiness
The quality of the peptide entering formulation development is determined almost entirely by the synthesis process. Solid-phase peptide synthesis, or SPPS, remains the dominant method for research-grade peptide production. It builds the peptide chain stepwise on a solid resin support, adding one protected amino acid residue at a time through iterative coupling and deprotection cycles.
The EMA’s guideline on synthetic peptides identifies the following as critical manufacturing steps subject to in-process controls:
- Resin loading and initial coupling efficiency
- Deprotection completeness at each cycle
- Washing steps to remove reagent residues
- Final cleavage and side-chain deprotection
- Purification by preparative HPLC
- Impurity profiling against defined acceptance limits
Monitoring coupling efficiency during synthesis typically relies on the Kaiser test, a colorimetric assay that detects free primary amines on the resin. A positive Kaiser result at an intermediate step signals incomplete coupling. If the step proceeds without correction, a deletion sequence accumulates in the crude mixture, and that impurity carries forward into the formulation.
The connection between synthesis quality and formulation stability is direct. Truncated sequences and oxidized variants do not just represent purity concerns. They can compete with the target peptide for binding interactions in assays, confound stability curves by degrading at different rates, and interact with excipients in ways the target peptide does not.
| Synthesis factor | Impact on formulation development |
|---|---|
| Coupling efficiency | Determines deletion impurity load entering formulation |
| Purification resolution | Controls co-eluting structural isomers that affect stability data |
| Residual reagents | Can catalyze hydrolysis or oxidation in solution formulations |
| Lyophilization-ready purity | Drives shelf-life projections and excipient compatibility |
Stability challenges and analytical characterization
Peptides degrade via multiple simultaneous pathways, and the formulation must address all of them, not just the most obvious one. The three primary concerns are hydrolysis of peptide bonds (particularly at Asp-Pro sequences), oxidation at methionine and tryptophan residues, and aggregation driven by hydrophobic surface exposure.
No single analytical method captures all degradation modes simultaneously. The field relies on a battery of orthogonal techniques, and robust characterization using NMR, LC-MS, and SEC is now considered standard practice for formulation-grade peptide work.
| Analytical method | Primary purpose | Typical application in formulation |
|---|---|---|
| LC-MS (LC-MS/MS) | Identity, impurity profiling | Confirms peptide mass, detects oxidation and deamidation products |
| SEC (size-exclusion chromatography) | Aggregation detection | Quantifies high-molecular-weight species in liquid formulations |
| NMR | Higher-order structure | Confirms secondary structure consistency across batches |
| CD (circular dichroism) | Secondary structure | Monitors helical or beta-sheet content changes under stress |
| FTIR | Solid-state structure | Assesses structural integrity of lyophilized cake |
| HDX-MS | Conformational dynamics | Identifies regions of structural flexibility affecting aggregation risk |
| SPR (surface plasmon resonance) | Binding activity | Confirms functional integrity of formulated peptide |
The data from these methods do not exist in isolation. Analytical characterization directly feeds formulation adjustments by linking structural findings to specific corrective changes. If SEC reveals aggregation increasing at neutral pH, the team adjusts pH downward or introduces a surfactant. If LC-MS shows a growing oxidation peak under ambient storage, an antioxidant or nitrogen headspace is introduced. This feedback loop is what separates rigorous formulation development from one-pass screening.
Pro Tip: Run SEC and LC-MS at every time point during stress testing, not just at the end. Early-stage aggregation detected by SEC often precedes oxidation signals in LC-MS by days. Catching it early allows corrective excipient changes before the formulation is locked.
AI-assisted spectral analysis is beginning to accelerate interpretation of multidimensional data sets from HDX-MS and SAXS, though AI-assisted data interpretation for formulation design remains a tool to augment, not replace, expert judgment at this stage.
Formulation presentation formats and stability trade-offs
The choice of physical presentation format has consequences that extend well beyond shelf life. Liquid, lyophilized, and encapsulated formats each carry distinct stability profiles, handling requirements, and practical constraints for laboratory use.
Liquid solutions offer ease of use and direct compatibility with most assay formats. However, they require continuous cold storage, are more susceptible to hydrolytic and oxidative degradation over time, and demand preservatives or antimicrobial agents in multi-dose configurations. For short-term experiments where the peptide will be consumed within weeks, a buffered liquid solution with defined pH and antioxidant support is often the most practical choice.
Lyophilized (freeze-dried) powders are preferred when long-term stability or resistance to stress conditions is required. The freeze-drying process involves three sequential phases: freezing, primary drying (sublimation of ice), and secondary drying (removal of bound water). Each phase requires optimization. Collapse temperature during primary drying, residual moisture content after secondary drying, and cake structure integrity all affect the quality of the final product. Before committing to this format, researchers should evaluate both the freeze-dried cake and the reconstituted solution because the reconstitution process itself can introduce aggregation if buffer composition or mixing procedure is not controlled.
Encapsulated formats, including nanoparticle and liposomal systems, are relevant primarily for research programs studying delivery mechanisms and are outside the scope of standard laboratory formulation for most research applications.
The most reliable strategy, particularly in early development, is parallel development of liquid and lyophilized presentations. This approach hedges against stability surprises that appear only after weeks of storage. Committing to a single format before stress testing is complete routinely causes project delays when that format fails.
Key practical considerations for laboratory preparation and storage include:
- Reconstitute lyophilized peptides using the buffer system specified in the formulation documentation, not water alone
- Avoid repeated freeze-thaw cycles for liquid formulations; aliquot before freezing
- Store liquid formulations under inert gas headspace where oxidation-sensitive residues are present
- Document excipient lot numbers alongside peptide batch records for traceability
Integrating formulation with manufacturing and regulatory considerations
Formulation development cannot proceed in isolation from manufacturing timelines and regulatory expectations. Injectable peptide projects typically require 9 to 12 months of formulation and analytical work before GMP manufacturing can begin. Compressing that timeline without completing the required studies is among the most common sources of late-stage project failures.
Regulatory frameworks governing this work include:
- ICH Q9 (Quality Risk Management): Guides risk-based decisions in selecting formulation conditions and identifying critical quality attributes
- ICH Q10 (Pharmaceutical Quality System): Requires documented processes for formulation development and change control
- ICH Q11 (Development and Manufacture of Drug Substances): Addresses how synthesis process understanding connects to formulation design space
- EMA synthetic peptide guideline: Specifies in-process controls and analytical expectations specific to SPPS-derived peptides
Regulatory expectations require that in-process controls during synthesis, including coupling efficiency monitoring and impurity profiling, are defined and documented before formulation development begins. Treating synthesis and formulation as separate sequential projects rather than integrated programs is a structural error that delays quality outcomes at both stages. Source: EMA Guideline on Synthetic Peptides
Integrated CDMO workflows that coordinate API development and drug product formulation within a single organization reduce handoff delays, allow real-time data sharing between synthesis and formulation teams, and accelerate analytical method development. For research groups working at laboratory scale, the practical equivalent is maintaining direct communication between whoever is responsible for synthesis QC and whoever is designing the formulation.
What I have learned from peptide formulation development in practice
I have observed that the most common failure point in peptide formulation projects is not insufficient analytical capability. It is treating characterization as a late-stage audit rather than a continuous input to formulation decisions. Teams often generate excellent analytical data but apply it only when a problem is already visible. The more productive model is to design characterization checkpoints into the formulation workflow from day one, using each data set to refine the next screening cycle.
The other lesson that rarely appears in published protocols involves excipient interactions that look benign at standard concentrations but become problematic at low peptide concentrations common in research assays. A surfactant concentration optimized for a 5 mg/mL formulation may cause solubility suppression or assay interference at 10 µg/mL. Testing formulations at the concentrations actually used in downstream assays is not optional. It is the step that determines whether all the preceding work translates to reliable experimental outcomes.
Understanding peptide sequence characterization and linking that knowledge back to formulation design is what separates a research program that generates reproducible data from one that repeatedly encounters unexplained variability. Plan for robustness from the first screening cycle.
— Vertex
Research-grade peptide support from Vertexpeptideslab
For researchers who require verified, high-purity peptides ready to enter formulation workflows without the uncertainty of undocumented source material, Vertexpeptideslab provides laboratory-grade synthetic peptides with full traceability and third-party Certificates of Analysis confirming purity at greater than 99% by HPLC and LC-MS.
Every batch available through Vertexpeptideslab is accompanied by batch-specific COA documentation, enabling you to align source material quality with your formulation and analytical method requirements from the start. The research catalog includes compounds such as TB-500, IGF-1 LR3, and Ipamorelin, each supplied with documented identity and purity data.
Explore the research catalog to review available compounds and access COA documentation for your laboratory planning. For laboratory research use only. Not for human or veterinary use.
FAQ
What does peptide formulation development involve?
Peptide formulation development is the process of converting a synthesized peptide into a stable, characterized dosage form by selecting excipients, presentation format (liquid or lyophilized), and storage conditions based on measured stability and compatibility data.
Why is SPPS quality critical for formulation outcomes?
Impurities generated during solid-phase peptide synthesis, including deletion sequences and oxidized variants, carry forward into formulation and affect both stability profiles and analytical readability, making coupling efficiency monitoring and purification non-negotiable steps.
What analytical methods are standard in peptide formulation?
LC-MS, SEC, NMR, CD, and FTIR form the core orthogonal toolkit. Each addresses a distinct degradation mode, and together they provide the structural and chemical data required to guide excipient selection and formulation adjustments.
Why develop liquid and lyophilized formats in parallel?
Parallel presentation development serves as risk mitigation because stability failures in one format often only emerge after weeks of stress testing. Having a backup format already in development prevents project delays when primary format data falls short.
How long does peptide formulation development typically take?
For injectable peptide projects, formulation and analytical development typically requires 9 to 12 months before GMP manufacturing readiness, depending on the peptide’s structural complexity and the number of formulation iterations required.
